GridWorld Q-learning vs Value Iteration

Generated by src/rl_experiment.py (deterministic; re-running reproduces this file byte-for-byte). Env: 4x4 grid, goal (3, 3), trap (1, 1), gamma=0.99, 300 episodes x 5 seeds (0, 1, 2, 3, 4).

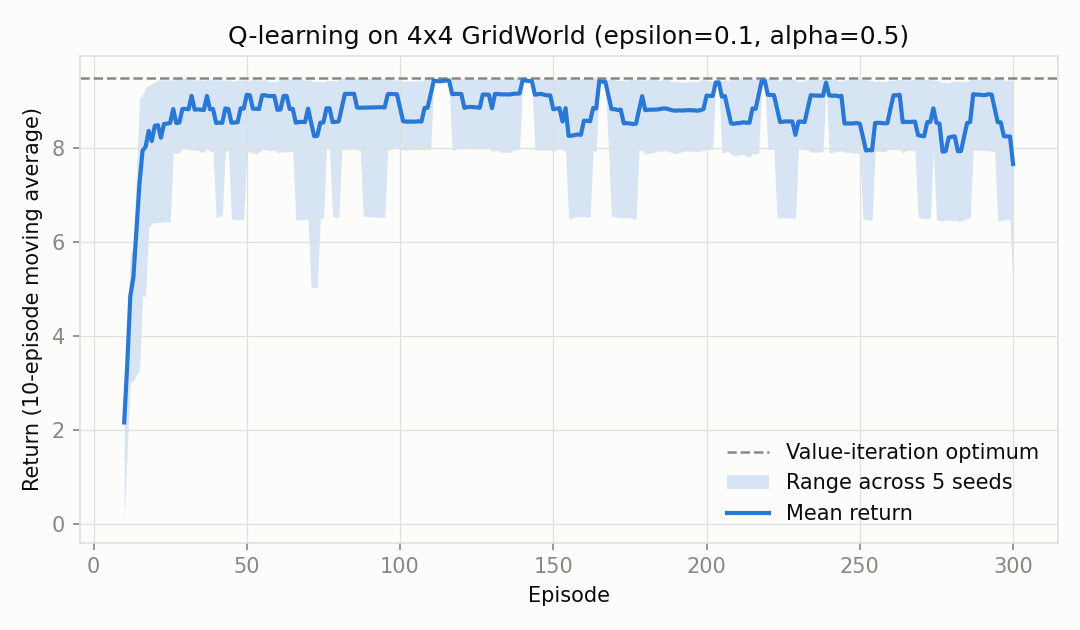

Learning curve

• Baseline config: epsilon=0.1, alpha=0.5.
• Final mean return (last 50 episodes, across seeds): 8.43 (per-seed range 7.96 to 9.12).
• Value-iteration optimal return from start: 9.50 (undiscounted; greedy rollout of the exact solution).
• Uniform-random policy baseline: -3.44.
• Greedy rollout of the trained policies: 9.50 -- the residual gap in the training curve is the epsilon-greedy exploration cost, not a policy error.

Epsilon / alpha sweep

Scored by mean return over the final 50 episodes across 5 seeds. agreement is the fraction of non-terminal states whose greedy action is optimal under value iteration; episodes to optimal is the mean episode after which the greedy policy first achieves the optimal return.

epsilon	alpha	tail mean return	greedy return	agreement	episodes to optimal
0.05	0.1	9.35 (best)	9.50	0.93	16
0.05	0.5	8.93	9.50	0.86	12
0.1	0.1	8.50	9.50	0.99	15
0.1	0.5	8.43	9.50	0.93	13
0.3	0.1	7.24	9.50	0.91	17
0.3	0.5	7.12	9.50	0.94	13

Learned greedy policy

Arrows = greedy action, G = goal (+10), T = trap (-5). Left: value iteration. Right: Q-learning (seed 0, baseline config).

Value iteration        Q-learning
v > v v                v > > v
v T v v                v T v v
v v v v                v v > v
> > > G                > > > G

Ties note: several states have multiple optimal actions (equal path length to the goal), so the two grids may show different arrows at a state while both are optimal; agreement above counts an action as correct if it ties the value-iteration maximum.

Value function

Findings

• Q-learning reaches the value-iteration optimum. The greedy rollout of the trained baseline policies earns 9.50, matching the exact optimum 9.50 (true for every sweep config), and 93% of non-terminal greedy actions tie the optimal action values.
• Alpha sets convergence speed. In this deterministic env a large step size is safe: alpha=0.5 needs 13 episodes on average to make the greedy policy optimal vs 16 for alpha=0.1, while final greedy quality is identical.
• Epsilon taxes the training return. Mean tail return falls monotonically with exploration (epsilon=0.05: 9.14, epsilon=0.1: 8.47, epsilon=0.3: 7.18) because each random step risks the trap or a detour, which is why epsilon=0.05, alpha=0.1 wins the tail-return ranking; the exploration cost is paid during training only, not by the final greedy policy.
